Skandinova 68 - Windproof (Iceland)



Scandinavian windows Skandinova 68 - Windproof (Iceland) as the name suggests is a typical window system used in the Scandinavian countries, based on the standard Skandinova 68 - Classic profile. Characteristic for these windows is their design and the method of opening the joinery - to outside, thanks to which the windows are additionally sealed by the wind and save free space inside the room without causing a collision when opening them inside. The Skandinova 68 Windproof profile is additionally enriched with an aluminum cladding on the outside and an additional gasket. The technique of two gaskets and aluminum cladding results in better resistance to external conditions and improves the tightness of the profile to wind and water. This system is prepared for the Iceland market and meets the strict standards required in Iceland.



Construction:

The wooden glued timber - pine, meranti, sapele.

The depth of the frame is 115 mm.

The depth of the wing is 68 mm.

In addition, GUTMANN NORDWIN aluminum profiles from the outside.



Glazing:

As a standard, double glazing 6/18/4 Ug = 1,1 W / m2K.

Optionally, panes with increased acoustic insulation parameters,

safe, tempered, anti-burglary, ornamental glass, solar protection, etc.



Standard aluminum edge frame.

Optionally for the use of warm plastic edge frame or RAL color edge frame.



Fittings:

Fittings in the Scandinavian standard of producer IPA and ASSA.

The system of closing on handles or stylish hooks.



Gasket:

Two profile gaskets from Dewenter or Schlegel Q-Lon.

The color of the gasket - white, brown, black, gray - depending on the color of the joinery.



Drip:

No aluminum drip cap due to the aluminum profile from the outside.

The outer surface of the wing and the frame are completely covered with aluminum.

Aluminum cladding in basic RAL colors. It is possible to make an aluminum cladding

in the selected color from the RAL palette on request.



Silicone:

Silicone applied to our joinery only by reputable manufacturers.

Color - colorless, white, light brown, dark brown, black, anthracite - depending on the color of the joinery.



Colors:

Joinery painted in lasur colors with visible wood structure from the available color palette

or any solid color from the RAL or NCS palette.



Accessories:
  • window bars (inside internal glass, vienna bars, construct bars, etc.)
  • handles with keys, handles with cylinder-key to balcony doors etc.
  • brake in handles
  • many other...

Our windows in the Scandinavian system can be made in the RETRO profile (with decorative profile on the frame and the wing) and in the MODERN profile (without a visible decorative profile). In addition, the wooden profile is covered from the outside with all aluminum.













Ways of opening windows in Scandinavian system:



TOP HUNG TOP SWING SIDE HUNG SIDE SWING
TOP HUNG TOP SWING SIDE HUNG SIDE SWING

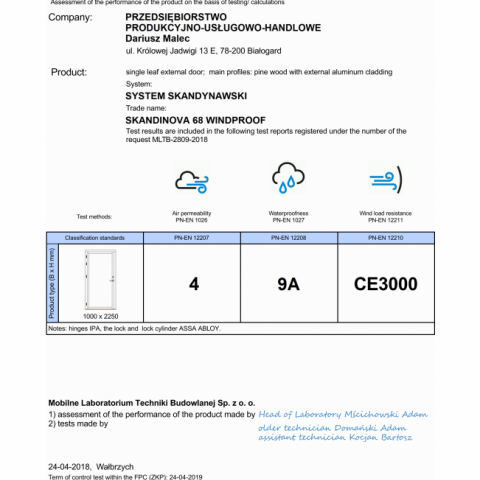

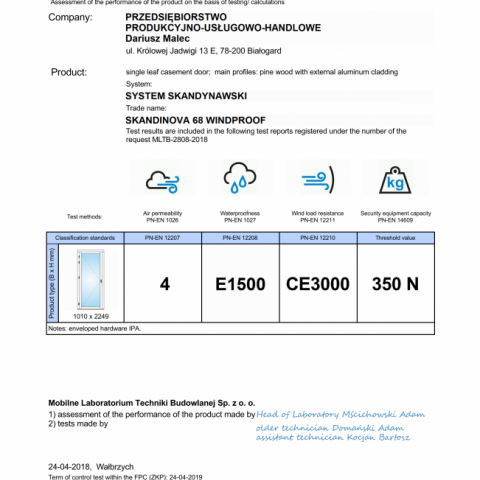

The windows in the Skandinova 68 Windproof system are dedicated to places extremely exposed to very strong winds and heavy rain rains practically in a horizontal line to the window with wind blowing up to 200 km / h. They meet very strict standards, which is confirmed by our research carried out by the woodworking laboratory. This system is most often sent to our clients in Iceland, but not only - also the northern part of Norway and Sweden.








Available all colors from the RAL and NCS palette. Below we present the most frequently chosen colors:

RAL

RAL3009

RAL3009
Teknos

RAL6012

RAL6012
Teknos

RAL7001

RAL7001
Teknos

RAL7016

RAL7016
Teknos

RAL7021

RAL7021
Teknos

RAL7022

RAL7022
Teknos

RAL7031

RAL7031
Teknos

RAL7022

RAL7022
Teknos

RAL7031

RAL7031
Teknos

RAL8017

RAL8017
Teknos

RAL9001

RAL9001
Teknos

RAL9005

RAL9005
Teknos

RAL9010

RAL9010
Teknos

RAL9016

RAL9016
Teknos

NCS

NCS S 0500-N

NCS S 0500-N
Teknos

NCS S 0502-Y

NCS S 0502-Y
Teknos

NCS S 1000-N

NCS S 1000-N
Teknos

NCS S 1002-Y

NCS S 1002-Y
Teknos

NCS S 2502-Y

NCS S 2502-Y
Teknos

NCS S 4050-B10G

NCS S 4050-B10G
Teknos

NCS S 5000-N

NCS S 5000-N
Teknos

NCS S 6020-G10Y

NCS S 6020-G10Y
Teknos

NCS S 7020-G10Y

NCS S 7020-G10Y
Teknos

NCS S 8010-Y90R

NCS S 8010-Y90R
Teknos
