NL - Eurosystem Profile - openable inside



Dutch windows NL-EUROSYSTEM as the name suggests is one of the typical window profiles used in the Netherlands. This system is based on Eurofelt IV68 window construction - the difference lies in the thicker construction of the window frame deepened to the dimension of 114mm. Other details are based on the eurofelz profile, both fittings and window opening system - inside the room. The NL-Eurofelz IV68 system is characteristic of the contemporary development of very typical and often residential buildings in the Netherlands.



Construction:

The wooden glued timber - pine, meranti, larch, oak.

The depth of the frame is 68 mm.

The depth of the wing is 68 mm.



Glazing:

As a standard, double glazing 4/18/4 Ug = 1,1 W / m2K.

Optionally, panes with increased acoustic insulation parameters,

safe, tempered, anti-burglary, ornamental glass, solar protection, etc.



Standard aluminum edge frame.

Optionally for the use of warm plastic edge frame or RAL color edge frame.



Fittings:

Fittings of SIEGENIA or ROTO manufacturers.

Optional RC1 or RC2 retractable or anti-burglar hardware.



Gasket:

Profile gasket from Dewenter or Primo.

The color of the gasket - white, brown, black, gray - depending on the color of the joinery.



Drip:

Aluminum drip on the wing. In addition, an aluminum trough in the window frame.

Color - white, brown, black, aluminum, anthracite - depending on the color of the joinery.

Optionally, it is possible to choose a drip for the color of the joinery in the selected RAL color on a special order.



Silicone:

Silicone applied to our joinery only by reputable manufacturers.

Color - colorless, white, light brown, dark brown, black, anthracite - depending on the color of the joinery.



Colors:

Joinery painted in lasur colors with visible wood structure from the available color palette

or any solid color from the RAL or NCS palette.



Accessories:
  • window bars (inside internal glass, vienna bars, construct bars etc.)
  • handles with keys, handles with button etc.
  • shutter openers (manual or automatic)
  • rotary hardware - tornado
  • ventilations
  • many other...

The construction and joinery industry is very characteristic when it comes to the Dutch market. Very often the construction of the building walls is based on the construction of windows, which were installed in the past during the construction of the building. The profile of NL-Eurosystem is based on the eurosystem IV68 window system - opening inwards - a tilt & turn window system that opens the window sash or opens it to ventilate the room.

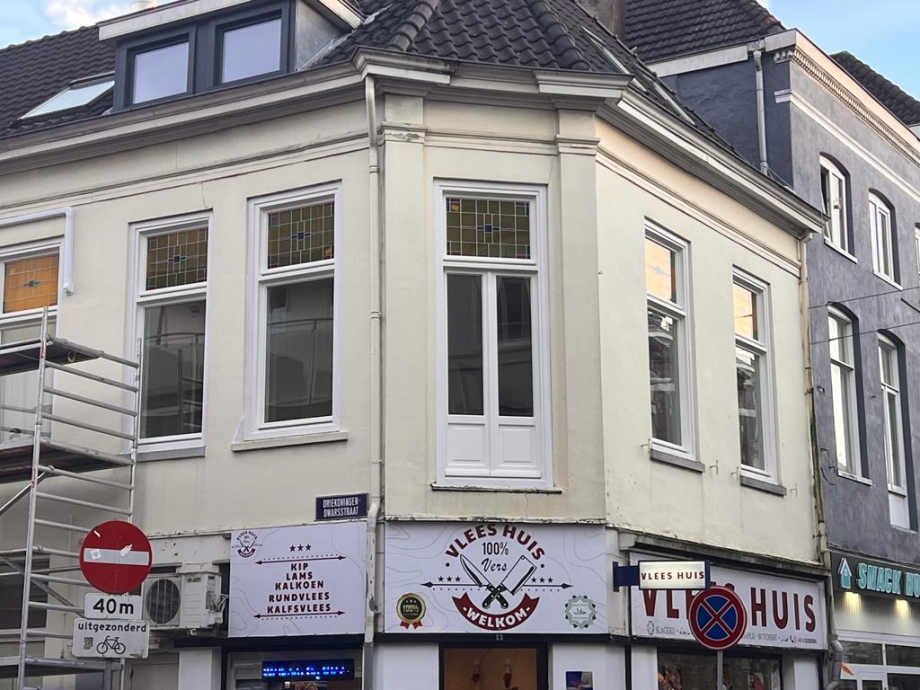

The color of woodwork is mostly white, but very often windows in the Netherlands are painted from the outside in two colors - a different color of the window frame and a different color of the movable window sash. In addition to the traditional white color, white derivatives predominate (eg cream) and various shades of green. Very often, there are also various types of stained-glass windows that reflect the historic character of the woodwork and the construction of the building.



Available colors from the LAZUR color palette (wooden structure color) or any color from the RAL and NCS palette. Below we present the most frequently chosen colors:

Paleta LAZUROWA

ACAJOU

ACAJOU
Teknos

AFROMOZJA

AFROMOZJA
Teknos

CALVADOS

CALVADOS
Teknos

CYPRYS

CYPRYS
Teknos

DĄB

DĄB
Teknos

FRAMIRE

FRAMIRE
Teknos

IROKO

IROKO
Teknos

KASZTAN

KASZTAN
Teknos

KEMPAS

KEMPAS
Teknos

ORZECH

ORZECH
Teknos

PINIA

PINIA
Teknos

SAPELLI

SAPELLI
Teknos

SIPO

SIPO
Teknos

STARA SOSNA

STARA SOSNA
Teknos

WENGE

WENGE
Teknos

WIŚNIA

WIŚNIA
Teknos

RAL

RAL3009

RAL3009
Teknos

RAL6012

RAL6012
Teknos

RAL7001

RAL7001
Teknos

RAL7016

RAL7016
Teknos

RAL7021

RAL7021
Teknos

RAL7022

RAL7022
Teknos

RAL7031

RAL7031
Teknos

RAL8017

RAL8017
Teknos

RAL9001

RAL9001
Teknos

RAL9005

RAL9005
Teknos

RAL9010

RAL9010
Teknos

RAL9016

RAL9016
Teknos

NCS

NCS S 0500-N

NCS S 0500-N
Teknos

NCS S 0502-Y

NCS S 0502-Y
Teknos

NCS S 1000-N

NCS S 1000-N
Teknos

NCS S 1002-Y

NCS S 1002-Y
Teknos

NCS S 2502-Y

NCS S 2502-Y
Teknos

NCS S 4050-B10G

NCS S 4050-B10G
Teknos

NCS S 5000-N

NCS S 5000-N
Teknos

NCS S 6020-G10Y

NCS S 6020-G10Y
Teknos

NCS S 7020-G10Y

NCS S 7020-G10Y
Teknos

NCS S 8010-Y90R

NCS S 8010-Y90R
Teknos

  • standard viena bars
    SZPROS WIEDEŃSKI
  • decorative viena bars
  • standard viena bars + decorative
      SZPROS WIEDEŃSKI STANDARDOWY + OZDOBNY
  • removable bars from outside
     SZPROS ZEWNĘTRZNY ODPINANY
  • inner glass bars
SZPROS MIĘDZYSZYBOWY
  • construct bars
SZPROS KONSTRUKCYJNY

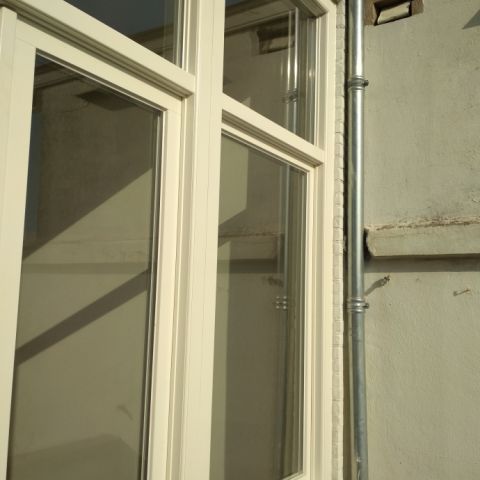

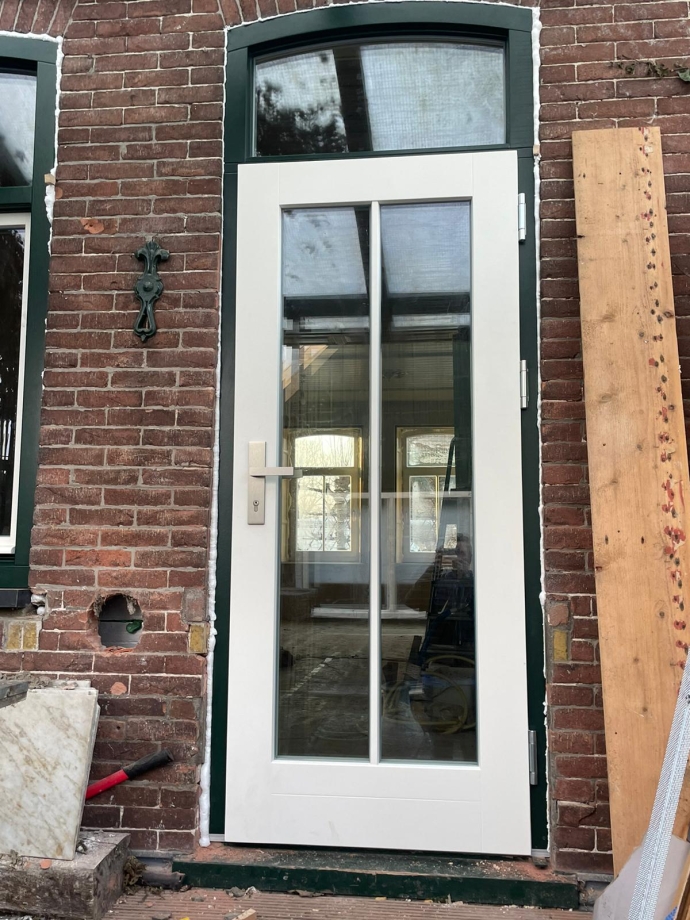

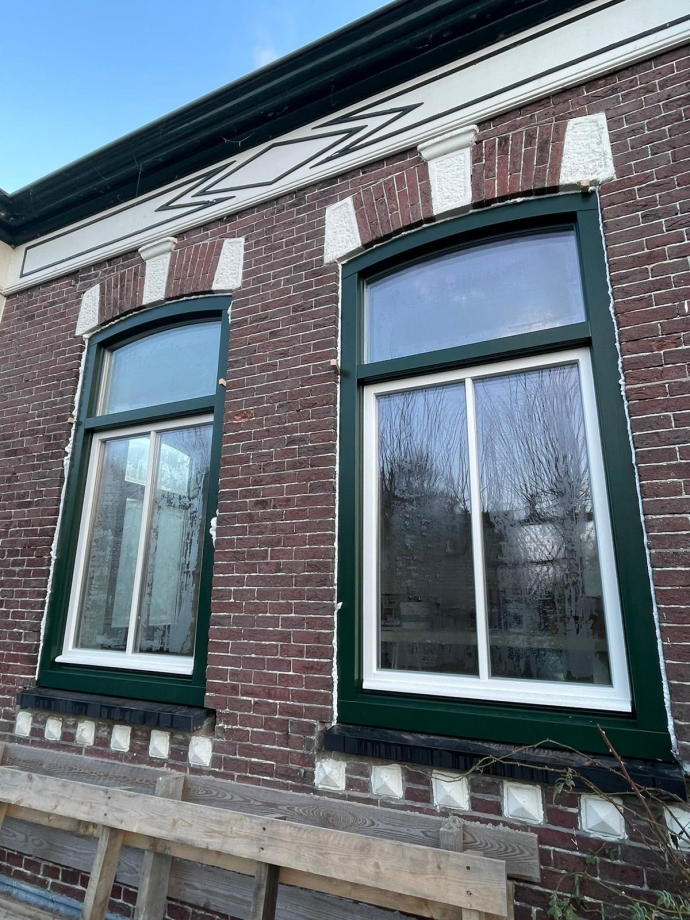

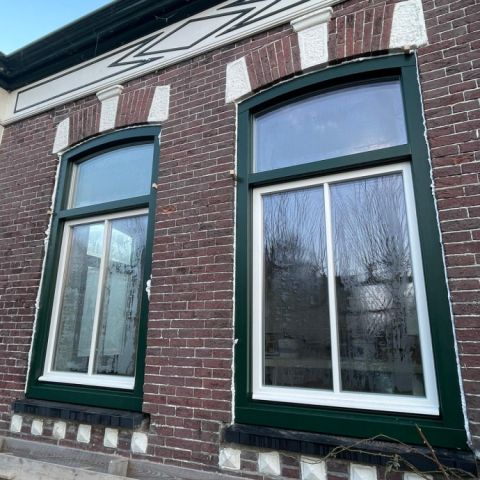

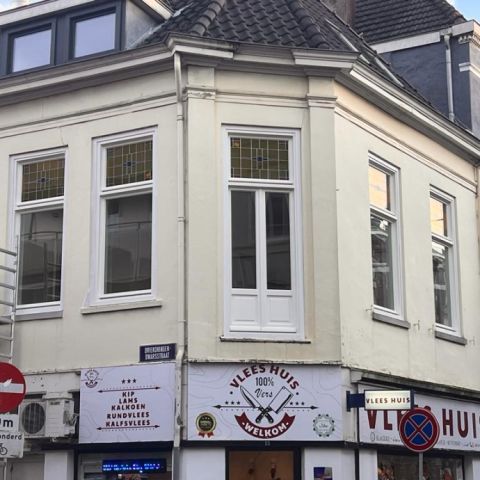

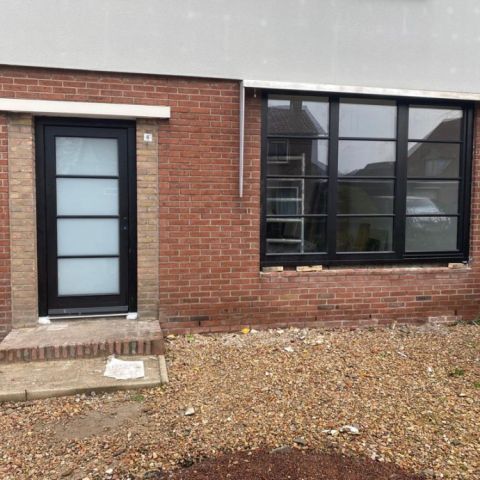

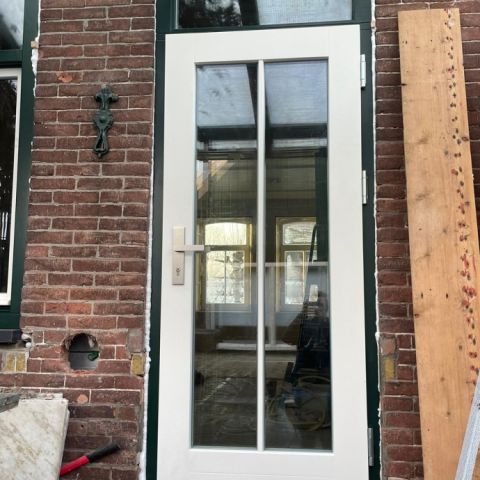

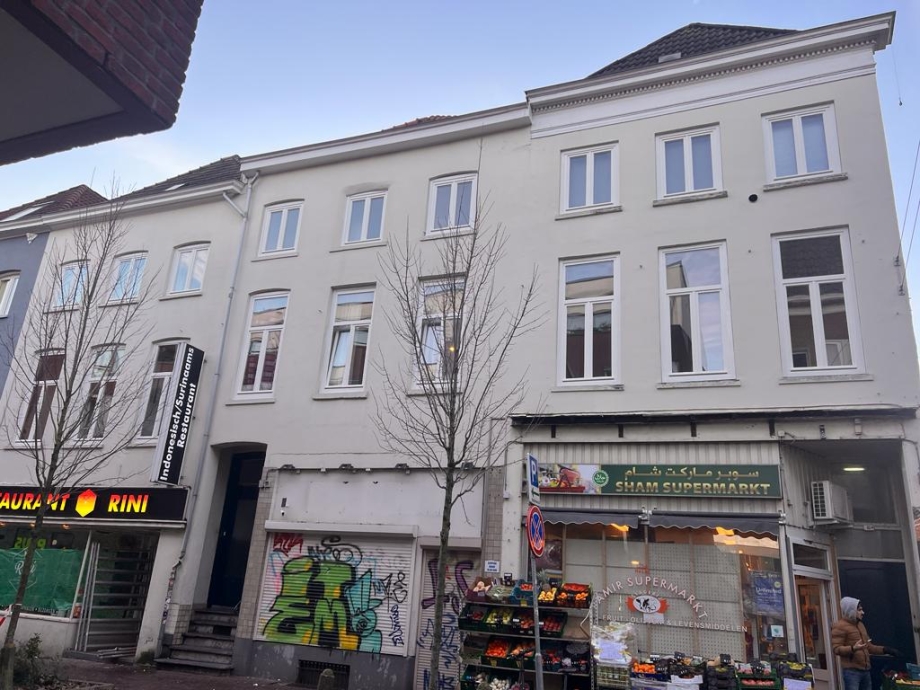

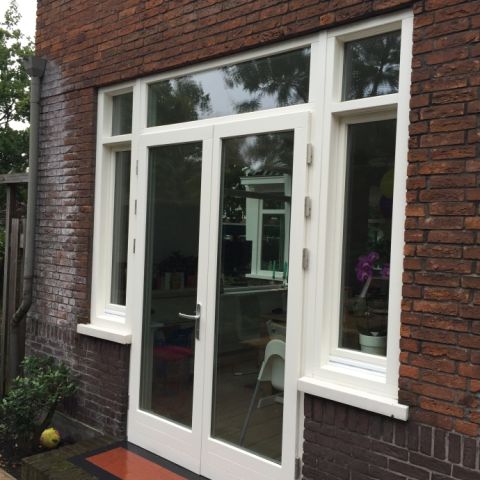

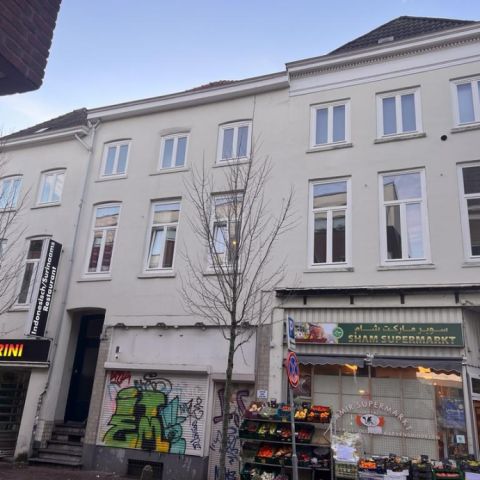

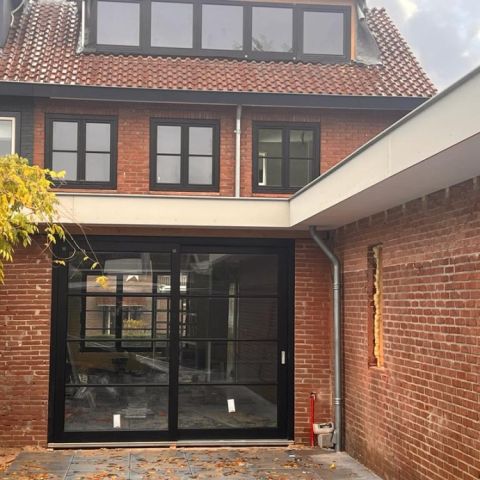

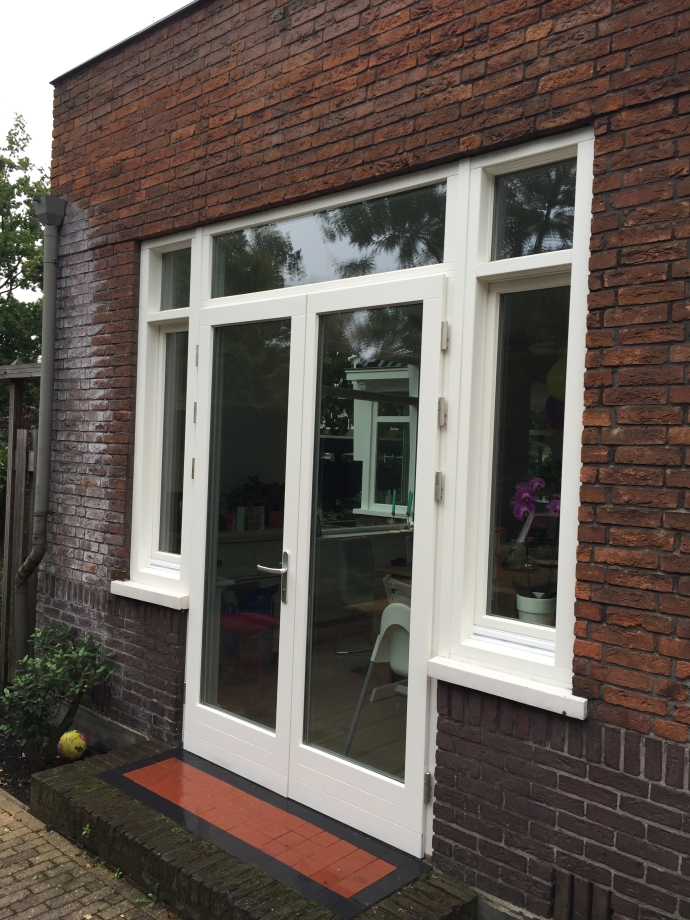

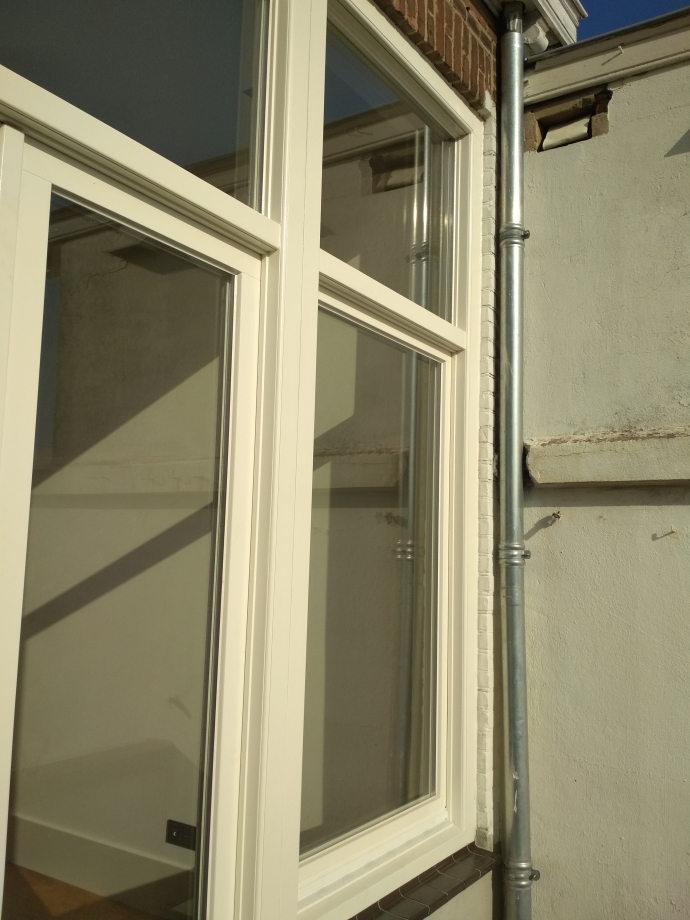

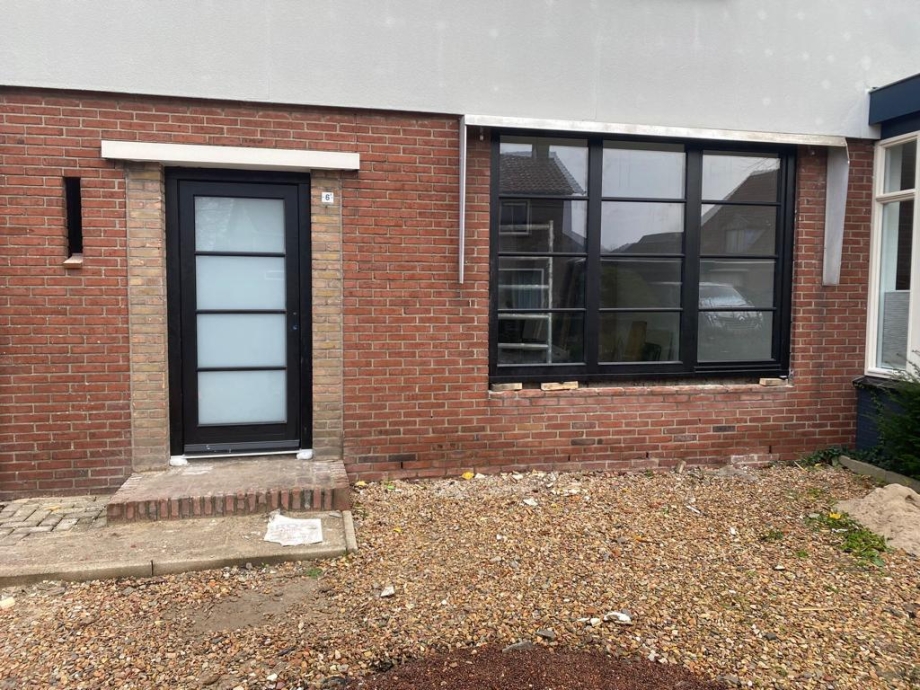

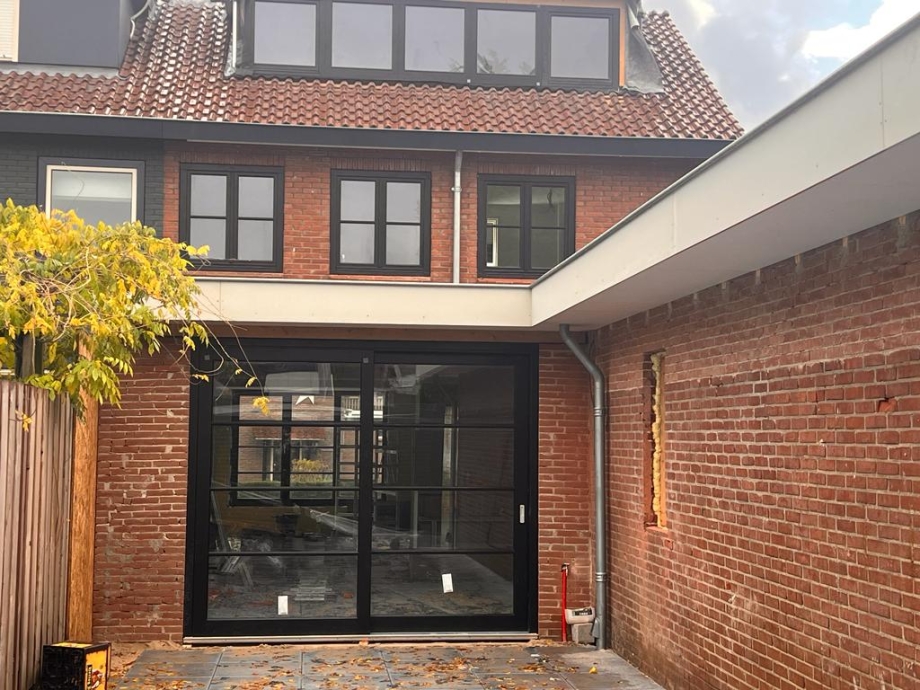

Product gallery
